MediaMVP - "Hirschmann" Edition

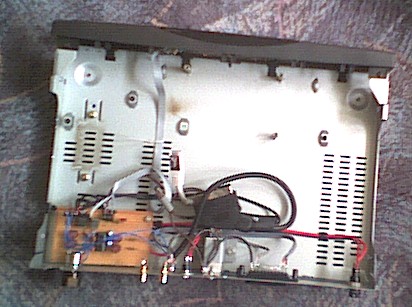

This is the case of an old satellite receiver by Hirschmann. The original board had been removed. Already installed is an audio pre-amplifier that raises the audio level, because the standard level of the MediaMVP is noticable too low. On the back panel several jacks, the gain control and a fuse are mounted.

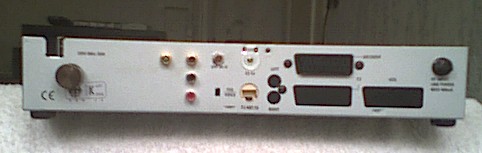

The back panel:

• Gain control
• Composite video output
• Digital audio out + Analog audio out
• 6V DC jack
• LAN port
• Old holes for analog audio not used
• Scart jack at the top, no Scart jacks mounted below.
• Fuse

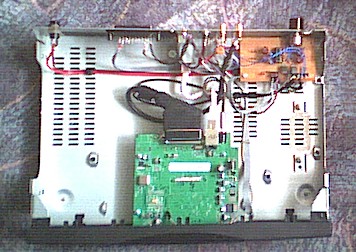

MediaMVP board mounted. All connections done without soldering.

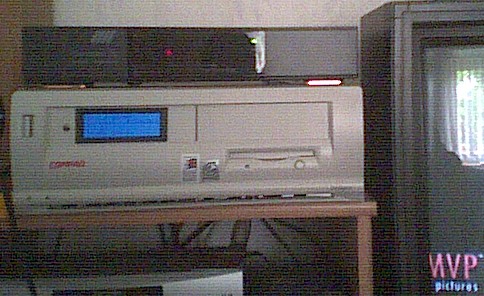

The "Hirschmann" MediaMVP in action. The original red LED shines through the front panel. The green LED is part of the Hirschmann hardware and is used as power indicator.
